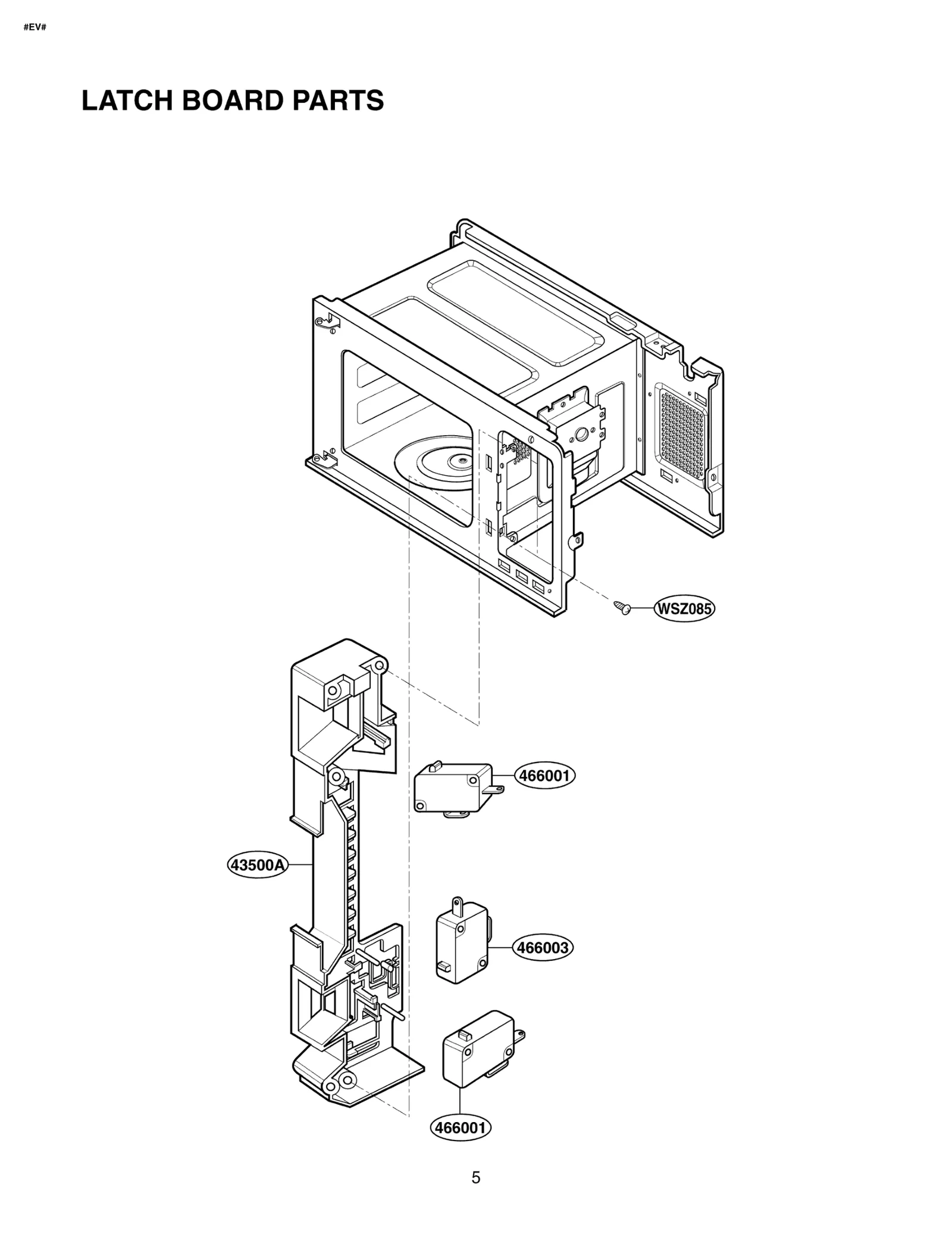

LG JES1339WC 04 Parts List

*01

LGE 3828W5A3666 LGE 3828W5A3666 Contact Us For Availability

View on Model

*02

LGE 3828W5S3366 LGE 3828W5S3366 Contact Us For Availability

View on Model

*05

LGE 3850W3A354B LGE 3850W3A354B Contact Us For Availability

View on Model

*07

LGE 3840W5T133B LGE 3840W5T133B Contact Us For Availability

View on Model

*10

LGE 3890W3Y677A LGE 3890W3Y677A Contact Us For Availability

View on Model

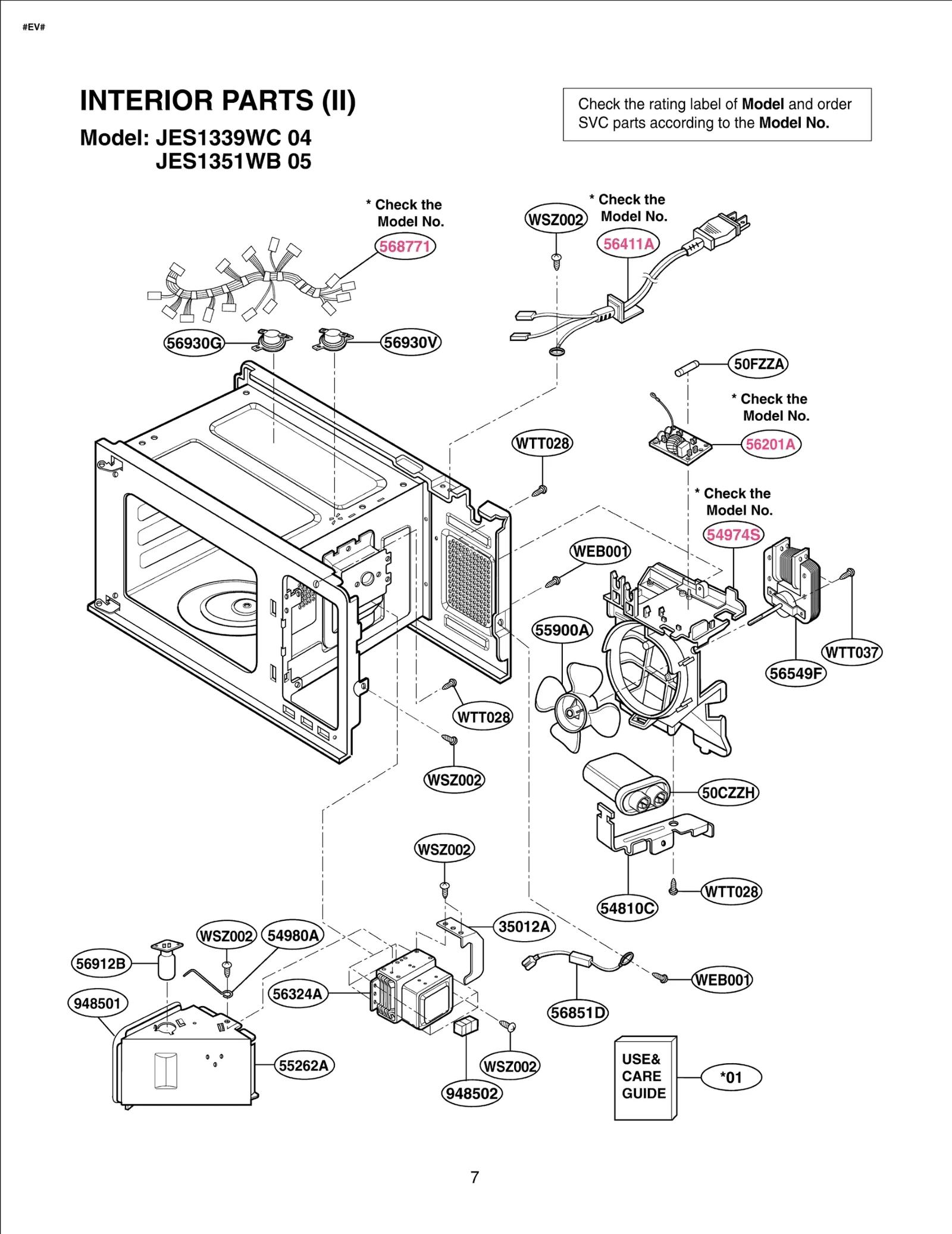

50CZZH

CAPACITOR,DRAWING[HIGH VOLTAGE LGE 0CZZW1H005A Contact Us For Availability

View on Model

50FZZA

3B74133K LG Microwave Oven Time Delay Fuse Backorder LGE 3B74133K $5.06

View on Model

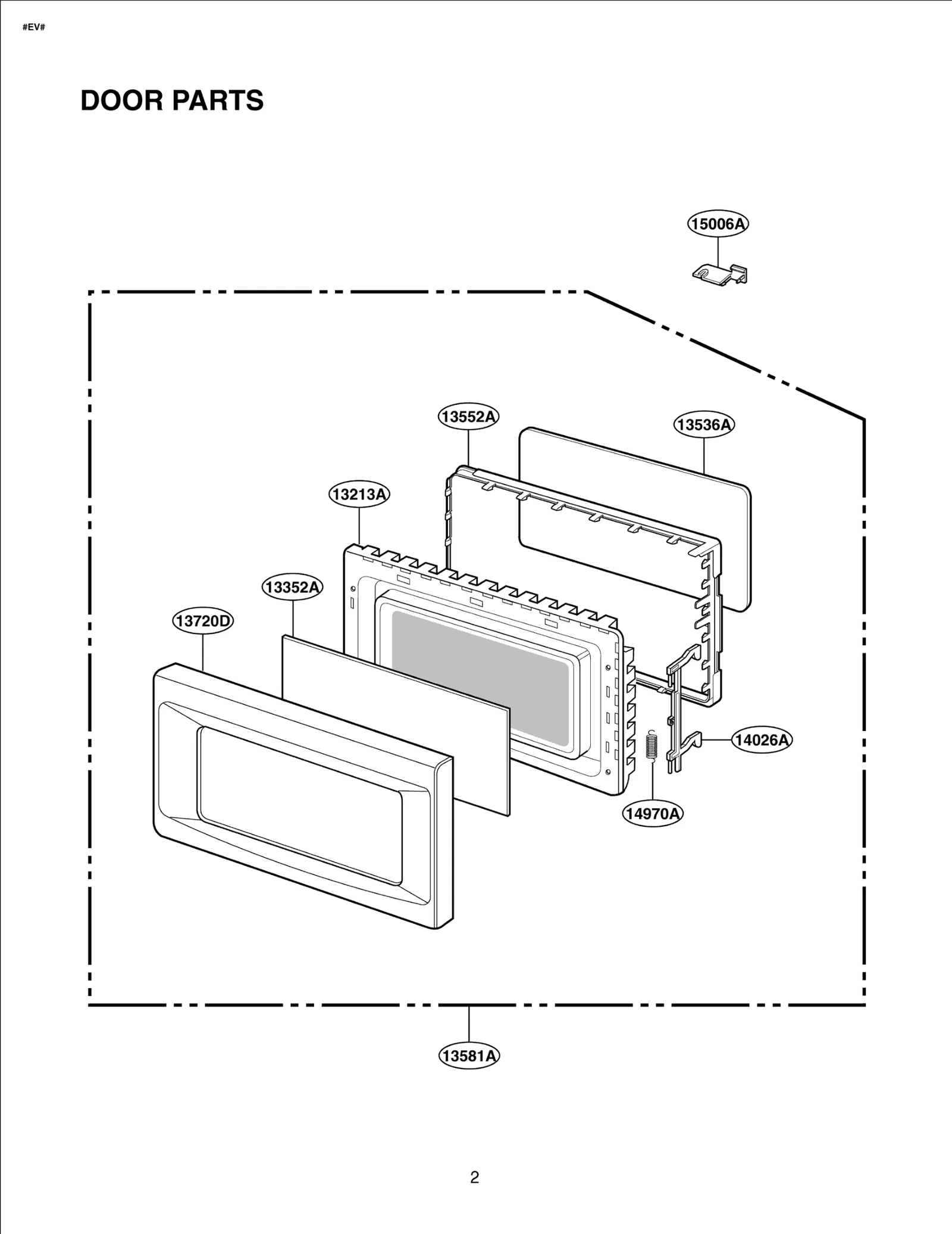

14026A

4026W2A016A LG Microwave Door Latch In Stock LGE 4026W2A016A $6.53

View on Model

14970A

4970WRA001B LG Spring Backorder LGE 4970WRA001B $6.53

View on Model

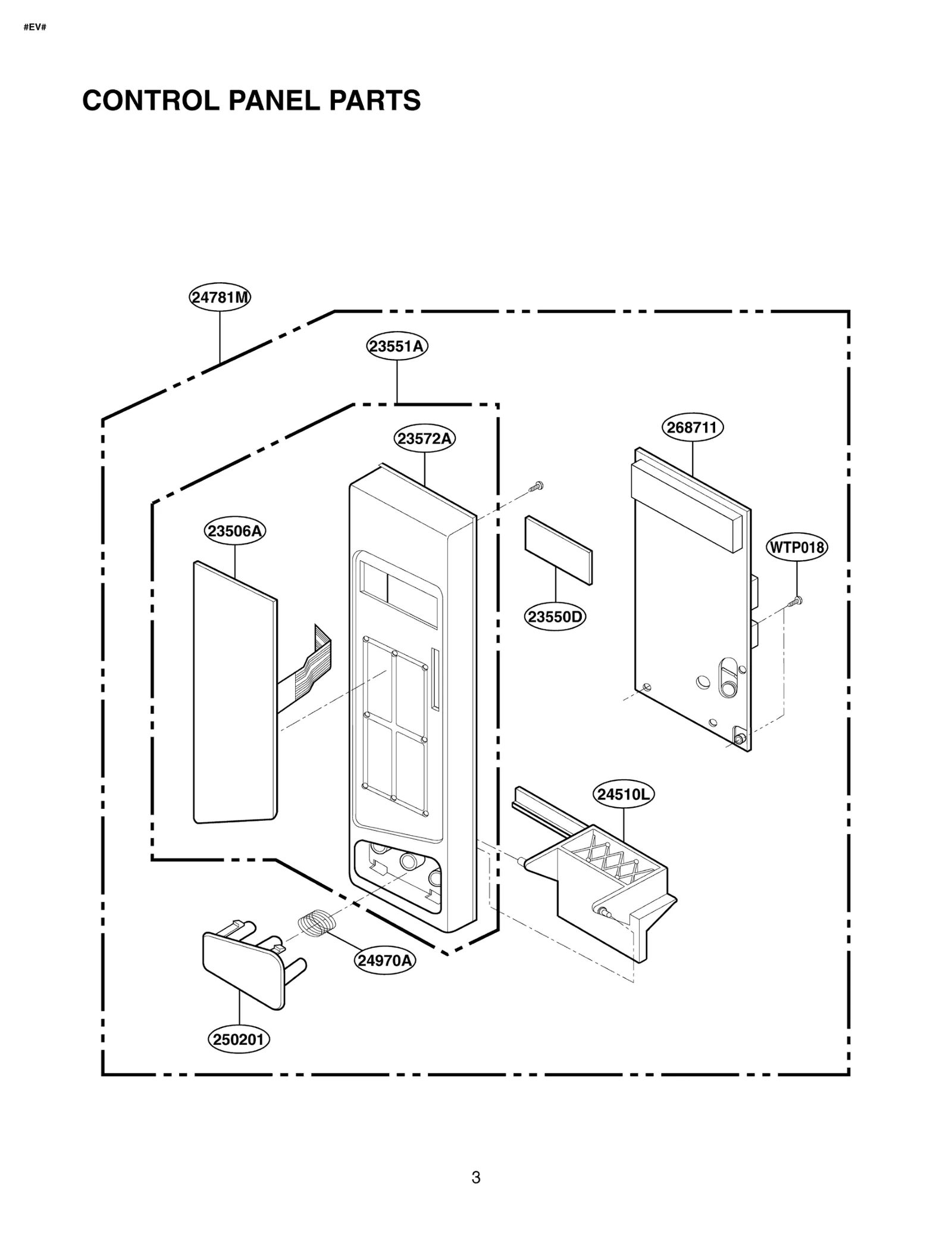

24510L

4510W3L003A LG Microwave Lever Release Backorder LGE 4510W3L003A $6.53

View on Model

24970A

4B72023B LG Microwave Oven Door Button Spring Backorder LGE 4B72023B $5.06

View on Model

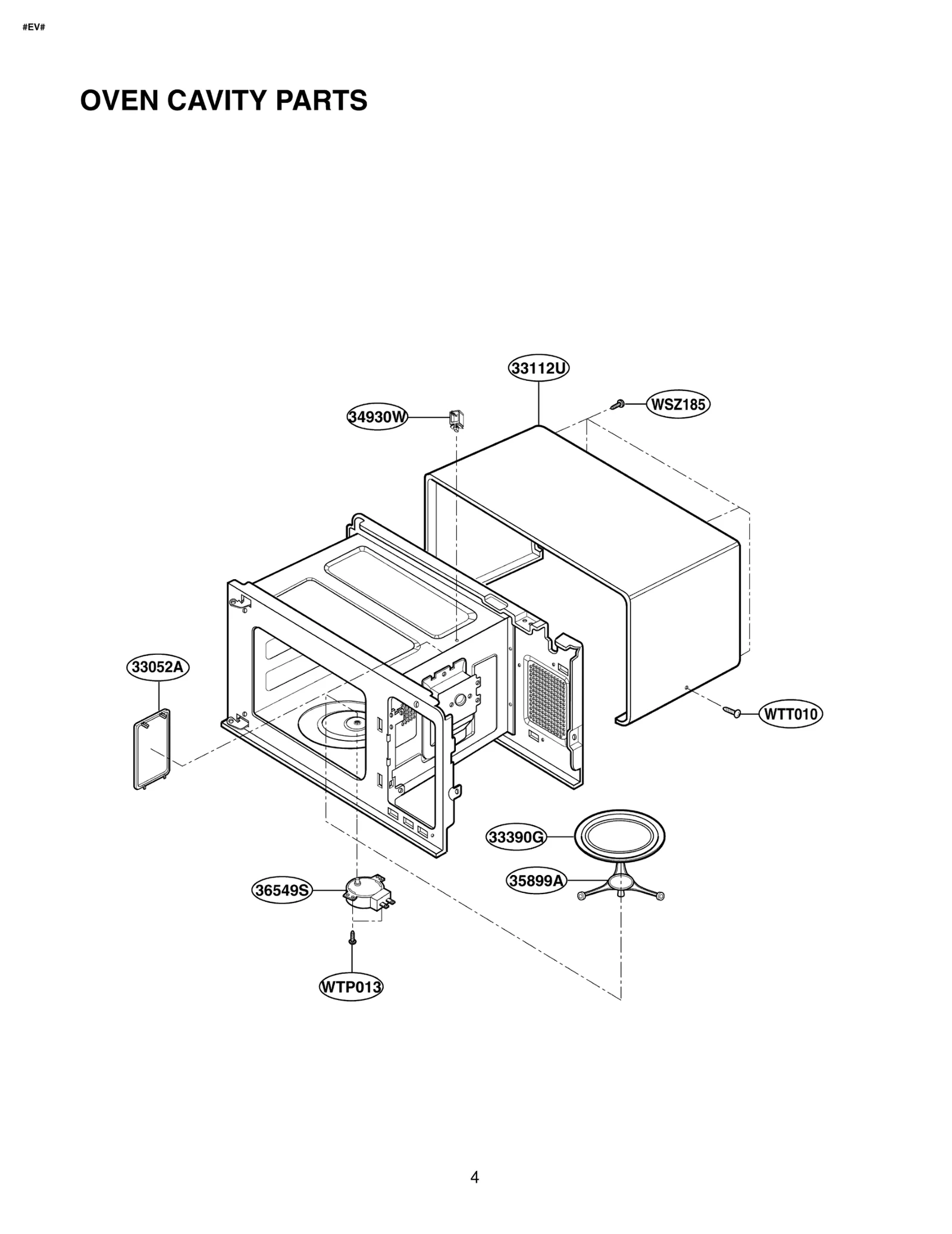

33052A

3052W3A015A LG Resin Cover Backorder LGE 3052W3A015A $6.53

View on Model

35012A

5012W3A020C LG Insulator Backorder LGE 5012W3A020C $6.53

View on Model

35889A

5889W1A005D LG Turntable Assembly Backorder LGE 5889W1A005D $15.56

View on Model

43500A

3500W1A018C LG Locker Holder Backorder LGE 3500W1A018C $15.56

View on Model

54810C

4810W4C003B LG Capacitor Bracket Backorder LGE 4810W4C003B $6.53

View on Model

54974S

4974W0A003B LG Suction Guide Backorder LGE 4974W0A003B $13.53

View on Model

54980A

4980W3A038A LG Supporter Backorder LGE 4980W3A038A $6.53

View on Model

55262A

5208W1A017A LG Duct Backorder LGE 5208W1A017A $10.38

View on Model

55900A

5900W1A007B LG Fan Backorder LGE 5900W1A007B $6.53

View on Model

56170D

TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023L Contact Us For Availability

View on Model

56201A

FILTER ASSEMBLY(CIRC) LGE 2B72130M Contact Us For Availability

View on Model

56324A

6324W1A001L LG Microwave Oven Magnetron In Stock LGE 6324W1A001L $109.79

View on Model

56411A

POWER CORD ASSEMBLY LGE 6411W1A019S Contact Us For Availability

View on Model

56549F

6549W1F009C LG AC Fan Motor Backorder LGE 6549W1F009C $52.18

View on Model

56851D

6851W1A002B LG Cable Assembly Backorder LGE 6851W1A002B $10.38

View on Model

56912B

6912W3B002L LG Microwave Oven Incandescent Li Backorder LGE 6912W3B002L $10.38

View on Model

56930G

Thermostat LGE 6930W1A002H Contact Us For Availability

View on Model

56930V

6930W3A001J LG Thermostat Backorder LGE 6930W3A001J $5.69

View on Model

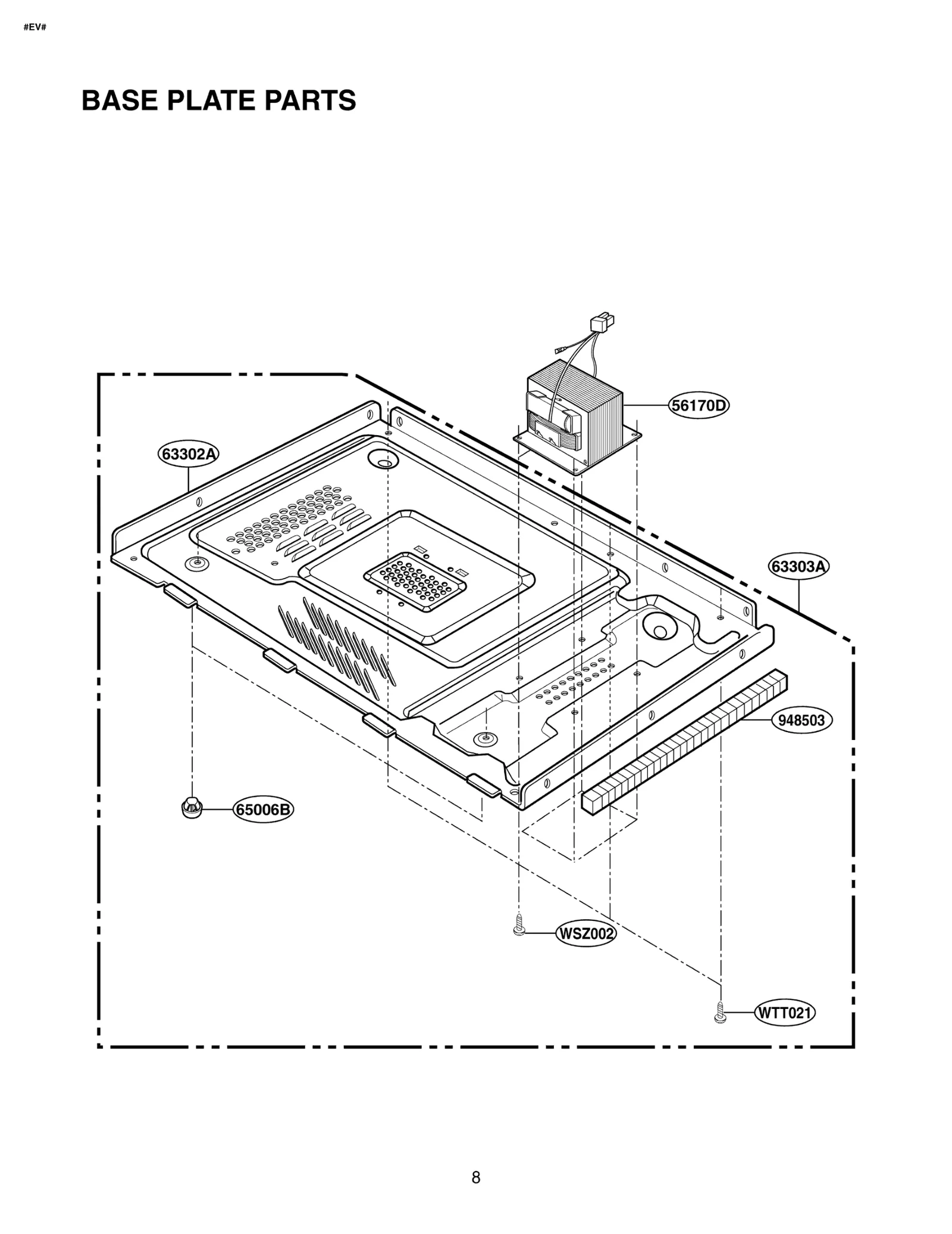

63302A

BASE PLATE LGE 3302W0A036B Contact Us For Availability

View on Model

63303A

BASE PLATE ASSEMBLY LGE 3303W0A019B Contact Us For Availability

View on Model

65006B

5006W3A019A LG Cap-Base Plate Backorder LGE 5006W3A019A $6.53

View on Model

466001

6600W1K001D LG Microwave Oven Door Micro Swit Backorder LGE 6600W1K001D $11.42

View on Model

466003

6600W1K001C LG Microwave Oven Micro Door Swit Backorder LGE 6600W1K001C $10.38

View on Model

568771

LGE 6877W1A482H LGE 6877W1A482H Contact Us For Availability

View on Model

948501

4850W1A001H LG Damper Backorder LGE 4850W1A001H $6.53

View on Model

948502

3B72244C LG Damper Backorder LGE 3B72244C $6.53

View on Model

948503

CUSHION LGE 4850W1A001F Contact Us For Availability

View on Model

BZ1

BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability

View on Model

RY2

RELAY LGE 6920W5A009A Contact Us For Availability

View on Model

WEB001

1EBF0402494 LG TAPTITE Screw Backorder LGE 1EBF0402494 $6.53

View on Model

WSZ002

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.53

View on Model

WSZ085

4B70188C LG Customized Screw Backorder LGE 4B70188C $6.53

View on Model

WTP018

1TPL0402818 LG Tapping Screw Backorder LGE 1TPL0402818 $1.08

View on Model

WTT021

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $5.06

View on Model

WTT028

1TTL0402818 LG Oven Microwave Tapping Screw Backorder LGE 1TTL0402818 $6.53

View on Model

WTT037

1TTL0403818 LG Tapping Screw Backorder LGE 1TTL0403818 $6.53

View on Model
